Spring Boot has revolutionized the development of Java applications by providing a robust framework that simplifies configuration and dependency management. One of the powerful features of Spring Boot is Aspect-Oriented Programming (AOP), which helps separate cross-cutting concerns like logging, security, and transaction management. This article provides an in-depth look into AOP in Spring Boot, explaining its concepts, use cases, and how to implement it effectively.

What is Aspect-Oriented Programming (AOP)?

Aspect-Oriented Programming (AOP) is a programming paradigm that can modularize cross-cutting concerns in an application. These concerns are aspects of the application that affect multiple parts of the code, such as:

• Logging
• Transaction management
• Security (e.g., authentication and authorization)
• Exception handling
• Performance monitoring

Instead of scattering code throughout multiple classes, AOP enables a cleaner, more modular approach, allowing developers to separate business logic from concerns like logging or security.

Key Concepts of AOP in Spring Boot

Spring Boot provides built-in support for AOP through the Spring AOP module, which is based on the Proxy Pattern and allows for method interception. The key concepts in AOP are:

1. Aspect

• A modular unit of cross-cutting concern.
• Implemented as a class annotated with @Aspect.

2. Join Point

• A specific point during the program’s execution at which an aspect can be applied.
• In Spring AOP, join points are method executions.

3. Advice

• The actual action taken at a particular join point.
• Types of advice:
• Before Advice: Runs before a method execution (@Before).
• After Advice: Runs after a method execution (@After).
• After Returning Advice: Runs after a method completes (@AfterReturning).
• After Throwing Advice: Runs when a method throws an exception (@AfterThrowing).
• Around Advice: Wraps around a method and can control whether the method is executed (@Around).

4. Pointcut

• A predicate that matches join points.
• Defined using @Pointcut annotation.

5. Target

• The object whose method execution is being advised.

6. Weaving

• The process of linking aspects with the target objects.
• Spring AOP uses runtime weaving through dynamic proxies.

Setting Up AOP in Spring Boot

To use AOP in Spring Boot, follow these steps:

Directory structure

src/
 ├── main/
 │    ├── java/
 │    │    ├── com/
 │    │    │    ├── example/
 │    │    │    │    ├── programming/
 │    │    │    │    │    ├── config/
 │    │    │    │    │    │    ├── AopConfig.java
 │    │    │    │    │    ├── common/
 │    │    │    │    │    │    ├── aop/
 │    │    │    │    │    │    │    ├── LoggingAspect.java  <-- AOP class (optional)
 │    │    │    │    │    ├── controller/
 │    │    │    │    │    │    ├── aop/
 │    │    │    │    │    │    │    ├── TestController.java
 │    │    │    │    │    ├── service/
 │    │    │    │    │    │    ├── aop/
 │    │    │    │    │    │    │    ├── TestService.java  <-- Your service class
 │    ├── resources/
 │    │    ├── application.properties (or application.yml)

Step 1: Add Spring AOP Dependency

Spring Boot includes Spring AOP by default, but if you’re using a standalone Spring application, add the following dependency:

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-aop</artifactId>
</dependency>

Step 2: Enable AOP

Annotate a configuration class with an annotation @EnableAspectJAutoProxy To enable AOP support:

import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.EnableAspectJAutoProxy;

@Configuration
@EnableAspectJAutoProxy
public class AopConfig {
}

Step 3: Create an Aspect

Define an aspect with the @Aspect annotation and apply advice.

Example: Logging Aspect

import lombok.extern.slf4j.Slf4j;
import org.aspectj.lang.annotation.After;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.springframework.stereotype.Component;

@Aspect
@Component
@Slf4j
public class LoggingAspect {

    @Before("execution(* com.example.programming.service.aop.TestService.testMethod(..))")
    public void logBeforeMethodExecution() {
        log.info("Before executing method...");
    }

    @After("execution(* com.example.programming.service.aop.TestService.testMethod(..))")
    public void logAfterMethodExecution() {
        log.info("After executing method...");
    }

}

@Before Annotation is an AOP annotation that allows you to execute custom logic before the actual method execution.

@After Annotation is an AOP annotation that will enable you to execute custom logic after the actual method execution.

Example: Logging Method Return Values

@Aspect
@Component
public class LoggingAspect {

    @AfterReturning(pointcut = "execution(* com.example.programming.service.aop.TestService.testMethod(..))", returning = "result")
    public void logMethodReturn(JoinPoint joinPoint, Object result) {
        System.out.println(joinPoint.getSignature() + " returned: " + result);
    }
}

Explanation

@AfterReturningAdvice

• This advice executes after a method in the com.example.programming.service.aop.TestService.testMethod package successfully returns a value (i.e., without throwing an exception).
• It is commonly used for logging, auditing, or modifying return values.

JoinPoint Class is an interface in Spring AOP that provides metadata about the execution of the intercepted method. It is commonly used in advice methods to access details like:

1. Method Signature → joinPoint.getSignature()
2. Method Arguments → joinPoint.getArgs()
3. Target Object (Bean instance) → joinPoint.getTarget()

Advanced AOP Use Cases

1. Using @Around Advice for Execution Time Logging

import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.springframework.stereotype.Component;

@Aspect
@Component
public class PerformanceAspect {

    @Around("execution(* com.example.programming.service.aop.TestService.testMethod(..))")
    public Object measureExecutionTime(ProceedingJoinPoint joinPoint) throws Throwable {
        long start = System.nanoTime();
        Object result = joinPoint.proceed();
        long executionTime = System.nanoTime() - start;
        log.info("{} executed in {}ns", joinPoint.getSignature(), executionTime);
        return result;
    }
}

@Around is an AOP annotation that allows you to execute custom logic before and after the method execution.

ProceedingJoinPoint is a subinterface of JoinPoint used in @Around advice in Spring AOP. It provides additional functionality to control the method execution flow.

• ProceedingJoinPoint allows you to:

1. Proceed with method execution: joinPoint.proceed()
2. Access method signature and arguments: Similar to JoinPoint

2. Handling Exceptions with @AfterThrowing

import org.aspectj.lang.annotation.AfterThrowing;
import org.aspectj.lang.annotation.Aspect;
import org.springframework.stereotype.Component;

@Aspect
@Component
public class ExceptionHandlingAspect {

    @AfterThrowing(pointcut = "execution(* com.example.programming.service.aop.TestService.throwExceptionMethod(..))", throwing = "ex")
    public void logException(Exception ex) {
        System.out.println("Exception thrown: " + ex.getMessage());
    }
}

@AfterThrowing is an AOP annotation that runs only when the target method throws an exception.

3. Using Pointcut Expressions for Fine-Grained Control

import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;

@Aspect
public class CommonPointcuts {

    @Pointcut("execution(* com.example.programming.service.aop.TestService.testMethod(..))")
    public void testServiceMethods() {}

    // Before Advice: Runs before the method execution
    @Before("testServiceMethods()")
    public void beforeAdvice(JoinPoint joinPoint) {
        log.info("Before: {}", joinPoint.getSignature());
    }
}

Pointcut annotation(@Pointcut) is an annotation in Spring AOP used to define a reusable method representing a set of join points (where an aspect can be applied).

Create a RESTful API for testing Spring AOP.

Create the Service

import org.springframework.stereotype.Service;

@Service
public class TestService {

    public String testMethod(String name) {
        return "Hello, " + name;
    }

    public String throwExceptionMethod() {
        throw new RuntimeException("Something went wrong!");
    }
}

Create the RestController

import com.example.programming.service.aop.TestService;
import lombok.RequiredArgsConstructor;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/api/test")
@RequiredArgsConstructor
public class TestController {

    private final TestService testService;

    @GetMapping("/greet/{name}")
    public String greet(@PathVariable String name) {
        return testService.testMethod(name);
    }

    @GetMapping("/error")
    public String error() {
        return testService.throwExceptionMethod();
    }
}

Testing AOP in Action:

1. Start your Spring Boot application.
2. Open your browser or API testing tool (e.g., Postman) and test the following endpoints:

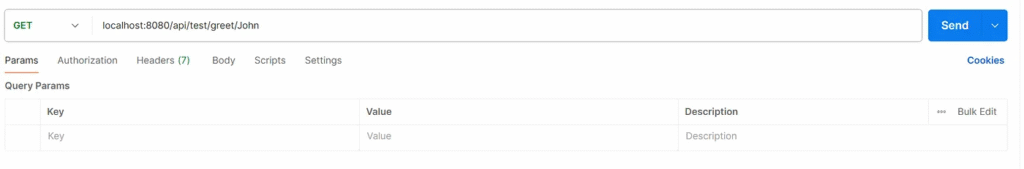

• GET /api/test/greet/{name} (e.g., GET /api/test/greet/John)

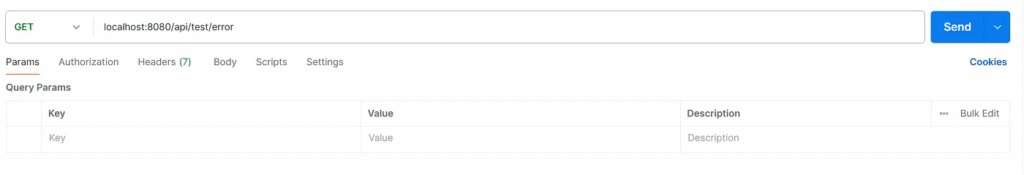

• GET /api/test/error (This will trigger an exception.)

Test case Before and After annotation

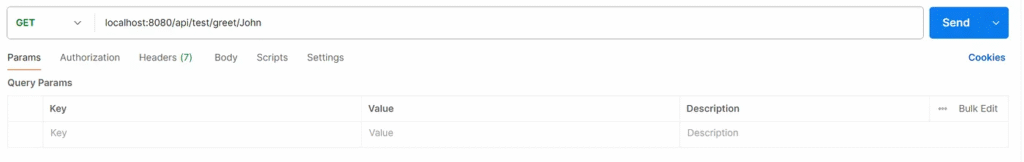

localhost:8080/api/test/greet/John

Console log

c.e.p.common.aop.LoggingAspect: Before executing method...
c.e.p.common.aop.LoggingAspect: After executing method...

Test case AfterReturning annotation

localhost:8080/api/test/greet/John

Console log

c.e.p.common.aop.LoggingAspect: String com.example.programming.service.aop.TestService.testMethod(String) returned: Hello, John

Test case around annotation

localhost:8080/api/test/greet/John

Console log

c.e.p.common.aop.LoggingAspect: String com.example.programming.service.aop.TestService.testMethod(String) executed in 149800ns

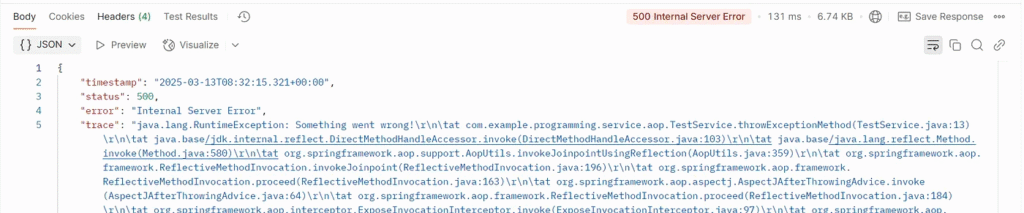

Test case AfterThrowing annotation

localhost:8080/api/test/error

Console log

c.e.p.common.aop.LoggingAspect: Exception thrown: Something went wrong!

Test case Pointcut Expressions

localhost:8080/api/test/greet/John

Console log

c.e.p.common.aop.LoggingAspect: Before: String com.example.programming.service.aop.TestService.testMethod(String)

Benefits of Using AOP in Spring Boot

1. Separation of Concerns

• Keeps business logic clean by moving cross-cutting concerns to separate aspects.

2. Code Reusability

• Aspects can be reused across multiple modules.

3. Maintainability

• Centralized handling of concerns like logging and security makes the code easier to maintain.

4. Performance Optimization

• Allows performance monitoring and optimization without modifying the core business logic.

5. Security Enforcement

• It can be used to enforce authentication and authorization at the method level.

When to Avoid AOP

While AOP is powerful, it should be used with caution. Scenarios where AOP may not be ideal:

• When the application logic is simple and does not require modularizing cross-cutting concerns.
• When debugging becomes difficult due to method interceptions.
• Using AOP excessively makes the code harder to understand and maintain.

Conclusion

Aspect-Oriented Programming (AOP) in Spring Boot is a powerful way to handle cross-cutting concerns like logging, security, and performance monitoring. Developers can write clean, maintainable, and reusable code by leveraging aspects, pointcuts, and advice. However, AOP should be used judiciously to avoid unnecessary complexity.
